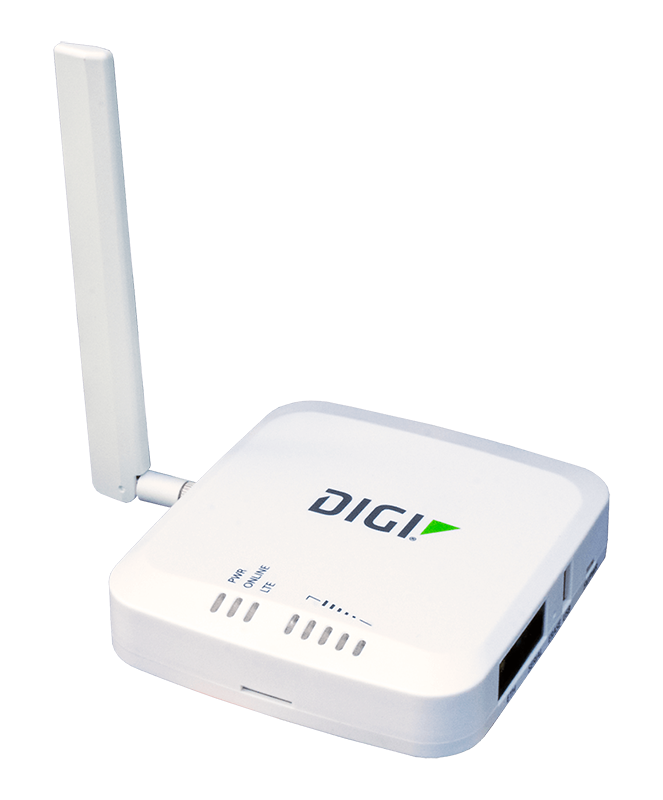

Digi Connect IT Mini Console Server

Now with Digi 360

Secure, affordable, managed out-of-band access for isolated remote IT devices


  • IoT router with LTE Cat-M for maximum coverage
  • Out-of-band (OOB) management and recovery using secure SMS
  • Advanced modem management software
  • Early detection and remediation of issues
  • Operates independently from in-band network
  • Identify any unusual activity or attempts to access the remote device
  • Send automated alerts via email or SMS to notify of any network issues
  • 5 V power enables host USB to power unit and eliminate power supply
  • Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • Value-added services include Digi Containers to enable powerful, cost-efficient applications

Digi Connect® IT Mini is a full function IoT router and remote console access server that ensures continuous network uptime to remote locations. It provides a cost-effective, always-on, out-of-band gateway for branch office routers in locations like retail stores, kiosks or other sites — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution.

Connect IT Mini enables backup connectivity to manage and correct issues with isolated, critical IT infrastructure.

For enterprises that need serial access for remote equipment monitoring, Digi Connect IT Mini offers a complete and secure cellular-based solution in the industry for less than the cost of an enterprise modem.

Using Digi RM and Connect IT Mini, network administrators can identify and remediate issues at the network edge before they can become a work order or cause a network interruption. Digi RM and Digi Connect IT Mini provide easy setup, configuration, security management and serial port monitoring of large installations of remote Digi devices.

Digi TrustFence®, a suite of hardware and security features, ensures the integrity of Digi Connect IT Mini and safeguards out-of-band access to isolated infrastructure. To secure your connections, built-in features include authenticated boot, encrypted data storage, access-controlled ports, and secure software updates.

Digi RM offers web-based device management for any Digi cellular routers, gateways or third-party devices with a single-pane-of-glass view to monitor and access Digi Connect IT console access servers and the critical IT assets to which they are connected.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

TrustFence

Digi TrustFence

Digi TrustFence is the security framework for Digi networking and embedded solutions. The TrustFence framework requires security to be designed in at the ground floor, resulting in robust security for connected devices. The built-in security of Digi TrustFence gives you secure connections, authenticated boot, encrypted data storage, secure software updates, and excludes all insecure ingress protocols.

Learn More

Compare Console Servers

Compare Console Servers
Digi Connect IT Mini with Digi 360
SKU: IT01-M100-GLB Digi Connect IT Mini IoT router and remote console access server IT01-M100-GLB How to Buy
Accessories
SKU: 170012 (1) Cellular antenna (black) for use with Digi products that have LTE modems - replacement 170012 How to Buy
SKU: 76000670 Digi DB-25 male modem adapter (8-pack) 76000670 How to Buy
SKU: 76000671 Digi DB-9 female console adapter (8-pack) 76000671 How to Buy
SKU: 76000672 Digi DB-25 male console adapter (8-pack) 76000672 How to Buy
SKU: 76000673 Digi DB-25 female console adapter (8-pack) 76000673 How to Buy
SKU: 76000702 Digi DB-9 male modem adapter (8-pack) 76000702 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-IT01-EXT-2YR Digi 360 extension for two additional years for Digi Connect IT Mini DIGI360-IT01-EXT-2YR How to Buy
SKU: DIGI360-IT01-EXT-4YR Digi 360 extension for four additional years for Digi Connect IT Mini DIGI360-IT01-EXT-4YR How to Buy
SKU: DIGI360-IT01-REN-1YR Digi 360 renewal for one additional year for Digi Connect IT Mini DIGI360-IT01-REN-1YR How to Buy
SKU: DIGI360-IT01-REN-3YR Digi 360 renewal for three additional years for Digi Connect IT Mini DIGI360-IT01-REN-3YR How to Buy
SKU: DIGI360-IT01-REN-5YR Digi 360 renewal for five additional years Digi Connect IT Mini DIGI360-IT01-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
SPECIFICATIONS Digi Connect® IT Mini with Digi 360*
CELLULAR** LTE Cat-M/NB-IoT/2G; LTE bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28; 2G bands: B2, B3, B5, B8
MODULE SUPPORT Global LTE Cat-M/NB-IoT/2G
SOFTWARE AND MANAGEMENT*
REMOTE MANAGEMENT Digi Remote Manager (cloud-based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (console, SSH)
NETWORK
ETHERNET RJ-45; 10/100 Mbps (auto-sensing)
CONNECTIONS
SERIAL/USB Serial port RJ-45 RS-232 and USB 2.0 host port
PHYSICAL
DIMENSIONS (L x W x H) 127 mm x 127 mm x 25 mm (5.0 in x 5.0 in x 1.0 in)
WEIGHT 0.37 kg (13 oz)
STATUS LEDS Power, online, LTE, (5) signal strength
POWER REQUIREMENTS
POWER INPUT 5.0 VDC, 1 A; 100-240 VAC
ENVIRONMENTAL
OPERATING TEMPERATURE 0 °C to 40 °C (32 °F to 104 °F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS**
CELLULAR CERTIFICATIONS Verizon, AT&T, PTCRB
SAFETY, ENVIROMENTAL, EMISSIONS/IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES03(B)/NMB-3(B)
WARRANTY***
PRODUCT WARRANTY 3-year
*Includes the Digi 360 solution for Digi Connect IT Mini (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.




ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3; IPSec & OpenVPN tunnels; Cryptology: SHA-1, SHA-2, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, OSPF, BGP, RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, automatic failover/failback to secondary connection
OTHER PROTOCOLS QoS via TOS/DSCP/WRED; UDP/TCP to serial

*For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features.
