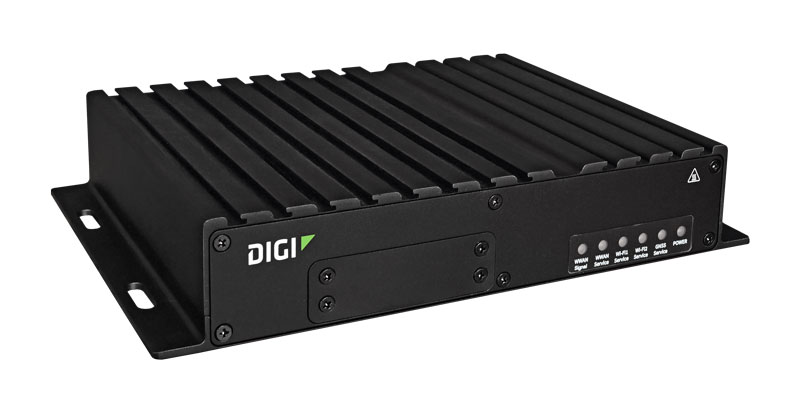

Digi TX64 5G Rail Cellular Router

New

5G railway-rated cellular router customized for both on-board heavy and light rail railways and metros


  • High-speed 5G NR cellular radio with 4G LTE-Advanced Pro Cat 20 and 3G fallback
  • FirstNet Trusted™ for primary responder communication
  • WR44 RR drop-in replacement and upgrade
  • Wired Gigabit M12 Ethernet (4-port) for onboard systems
  • Dual concurrent 867 Mbps 802.11ac Wi-Fi interfaces
  • Untethered Dead Reckoning combines GNSS with inertial sensors
  • Securely deploy, monitor and control devices with Digi Remote Manager®
  • Cryptographic co-processor with secure key generation and storage
How to Buy

Ideal for challenging rail transportation environments, Digi TX64 5G Rail router offers 5G/4G/3G cellular connectivity with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi access point and client, USB, serial, inertial-guided GNSS, Bluetooth® and 4-port Gigabit Ethernet switch, as well as a variety of configuration options.

5G is a game-changer for the rail industry. Until now, the speeds needed to securely move massive amounts of data quickly were reserved for wired networks. But today, with the rapid expansion of 5G (with LTE fallback), this fully rail-certified device delivers 5G performance, either as a primary or failover connection. Customers and suppliers alike will begin to expect 5G connectivity whether it is for other on-board equipment applications or the information being provided to riders. Paving the way for compatibility with FRMCS standards, this first industry-standard 5G rail-rated device prepares you for the future today.

Digi TX64 5G Rail is equipped with precision train positioning via an Untethered Dead Reckoning (UDR) module that reports location data more accurately by taking into account acceleration, speed and angular rate. Regardless of issues with traditional GNSS in certain weather conditions or tunnels, UDR allows you to monitor the train’s exact positioning and speed, optimize each train’s location and prevent collisions without the use of additional onboard systems.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More


Go-To 5G Connectivity

for the New Age of Retail

Tap into 5G speed and capacity to support unique shopping environments and experiences. Meet Our 5G Solutions

Compare Transportation Routers

Compare Transportation Routers
White Paper

Drop-In Connectivity for Data on the Move

New Digi routers for versatile public and private on-board communications

Get a Copy

Related Resources

Journeo Journeo’s Railway Video Solution Provides Safety and Efficiency on Hundreds of Trains in the U.K. With the Journeo Portal, Network Rail in the U.K. can get real-time information and video on its vehicles, systems, and IoT... READ STORY Webinar Getting the Most from Infrastructure Investments in Your Intelligent Transportation System Tuesday, June 7, 2022
2:00-3:00 p.m. Eastern Time
UPCOMING WEBINAR
How 5G Will Revolutionize Transportation How 5G Will Revolutionize Transportation 5G and the technologies it enables are already evolving the current state of public transit. VIEW PDF New Public Transit Technology: How Emerging Tech Is Changing Transportation New Public Transit Technology: How Emerging Tech Is Changing Transportation New public transportation technology offers potential solutions for overburdened city and metro traffic systems. Technologies... READ BLOG Digi Go-To 5G Solutions Digi Go-To 5G Solutions The future is here, and Digi go-to 5G solutions are ready to take you there! Whether you are charged with delivering high... WATCH VIDEO Go-To 5G Connectivity Go-To 5G Connectivity High-Performance Solutions Wherever 5G Takes You VIEW PDF Press Release Digi International Named As CES 2022 Innovation Awards Honoree READ PRESS RELEASE Digi TX64 5G Is an Honoree in CES 2022 Innovation Awards Digi TX64 5G Is an Honoree in CES 2022 Innovation Awards Digi TX64 5G, a complete solution for transportation systems, has been named an Honoree in the CES® 2022 Innovation Awards... READ BLOG Press Release Digi International Pilot Project with Chicago Transit Authority and City Tech Wins IoT Deployment of the Year Award COVID-19 era public transit management system has been crowned IoT Deployment of the Year at IoT World’s event in Silicon Valley READ PRESS RELEASE Press Release Digi International Introduces TX64 5G Rail Router for Intelligent Transportation Systems High-performance 5G cellular router offers redundant communications with 4G failover and extensive location-based services... READ PRESS RELEASE Digi TX64 5G Rail Datasheet Digi TX64 5G Rail Datasheet 5G railway-rated cellular router customized for both on-board heavy and light rail railways and metros VIEW PDF Positive Train Control Positive Train Control Rail-certified cellular communications can accelerate Positive Train Control (PTC) connectivity and compliance I WANT THAT FirstNet — Wireless Communications for Public Safety FirstNet — Wireless Communications for Public Safety FirstNet is a nationwide, interoperable, broadband wireless network that delivers pre-emptive voice, text and data for first responders and critical infrastructure, even in times of large-scale... LEARN MORE Smart Transportation: IoT Solutions for Transportation Management Systems Smart Transportation: IoT Solutions for Transportation Management Systems How transit operators can deploy IoT transportation strategies for smarter, more efficient operations VIEW PDF SEPTA Digi Helps SEPTA Comply With Federal Mandate For "Positive Train Control" (PTC) Serving more than one million riders each day, the Southeastern Pennsylvania Transportation Authority (SEPTA) is the nation’s... READ STORY

All related resources
Digi TX64 5G Rail
SKU: TX64-R210 Digi TX64 5G Rail router — 5G / LTE-Advanced Pro Cat 20, dual Wi-Fi, UDR, global TX64-R210 HOW TO BUY
Contact Us
Digi TX64 5G Rail - Primary Responder
SKU: TX64-R210-PR Digi TX64 5G Rail Primary Responder router — 5G / LTE-Advanced Pro Cat 20, dual Wi-Fi, UDR, global, FirstNet Ready™ TX64-R210-PR HOW TO BUY
Contact Us
Accessories
76002108 Digi TX64 Rail power connector 76002108 HOW TO BUY
Contact Us
76002109 Digi TX64 5G Rail Ethernet to Digi WR44 RR adapter cable 76002109 HOW TO BUY
Contact Us
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.   GET STARTED
SPECIFICATIONS Digi TX64 5G Rail
WIRELESS INTERFACES
WWAN
5G SUB-6 GHZ WITH 4G LTE AND 3G FALLBACK - WORLDWIDE 5G Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79; 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 — FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71; 3G HSPA+/WCDMA: B1, B2, B3, B4, B5, B6, B8, B9, B19
CONNECTOR (4) 50 Ω TNC (center pin: female)
SIM SLOTS 2 Mini-SIM (2FF)
SIM SECURITY SIM slot cover plate included
WI-FI
DUAL MODULES Private backhaul: 2 x 2 MU-MIMO 5 GHz 802.11 a/n/ac Wave 2, 867 Mbps (max)
Public Wi-Fi: 2 x 2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac, 867 Mbps (max)
HOTSPOT Captive portal, customizable splash page
AUTHENTICATION Basic T & C acceptance, enterprise RADIUS, shared password, hotspot system
3RD PARTY SERVICES Content filtering, embedded advertising
MODES Up to 8 access points and 1 client per Wi-Fi module (16+2 total) with Digi Accelerated Linux (DAL OS)
CONNECTORS Private backhaul: (2) 50 Ω RP-TNC (center pin: male)
Public Wi-Fi: (2) 50 Ω RP-TNC (center pin: male)
GNSS
TECHNOLOGY Untethered Dead Reckonning using inertial sensors (accelerometer, gyroscope); multi-constellation (GPS, Galileo, GLONASS, BeiDou)
SENSITIVITY -163 dB
PROTOCOL NMEA 0183 V 2.3 sentence output
CONNECTOR (1) 50 Ω RP-TNC (center pin: female); +3.3 VDC active antenna drive
HARDWARE
SERIAL
PORTS / CONNECTOR (1) RS-232; DB-9 male
ETHERNET
PORTS / CONNECTOR (4); M12 X-CODE
STANDARD IEEE 802.3; 10/100/1000 Base-T
USB
PORTS 2
STANDARD USB 3.0, Type A
MEMORY
RAM 2 GB
FLASH 8 GB (CFAST card)
PHYSICAL
DIMENSIONS (L X W X H) 260 mm x 196 mm x 51 mm (10.2 in x 7.8 in x 2 in)
WEIGHT 3.9 kg (8.6 lbs)
STATUS LEDS Power, WWAN signal, WWAN service, Wi-Fi service (per module), GNSS service, LAN (link, activty)
ENCLOSURE IP66 aluminum alloy
POWER
POWER INPUT 9 - 36 VDC, 60 W minimum power source required; ignition sense
POWER CONSUMPTION 28 W typical (idle); 41 W (peak RF Tx/Rx)
ENVIRONMENTAL
MOUNTING Slotted mounting flanges, grounding stud
OPERATING TEMPERATURE -40° C to 74° C (-40° F to 165.2° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 185° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing) at 25° C (77° F)
APPROVALS
CELLULAR PTCRB, AT&T, FirstNet Trusted™, T-Mobile, Verizon; visit www.digi.com/resources/certifications for latest cellular certifications
SHOCK / VIBRATION MIL-STD-810G: vibration (Method 414.6C-10, Category 11), shock (Method 516.6, Procedure I)
EMISSIONS/IMMUNITY FCC Part 15 Class B, EN 50121-3-2, IEC 61000-4-2/4-3, CISPR 16-2-3
ENVIRONMENTAL / INDUSTRIAL EN 50155, EN 45545-2, IEC 60068-2-1/2-2/2-30, ISO 7637-2/3, ISO 16750-2 load dump
WARRANTY
PRODUCT WARRANTY 3-year**

*Transfer rates are network operator independent

**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager® Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow;.509 certificate management; dead reckoning
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; Ethernet bonding; GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, IPv6 RIP-NG, OSPFv3, BGP; IP failover: VRRP; automatic failover; Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS; Nagios, DNS server, NTP server, mDNS, IPerf
LOCAL MANAGEMENT Web interface (HTTPS); CLI (SSH, serial port); SNMP v2/v3 read-only; custom factory configuration
MANAGEMENT/ TROUBLESHOOTING PROTOCOLS Protocol analyzer with PCAP for Wireshark, event and system logging (with syslog), accessible from Digi Remote Manager, SFTP or SCP, CLI, Web UI, Intelliflow
PROGRAMMING TOOLS/ ENVIRONMENTS Python v3 (regularly updated to newest version)

For a comprehensive list of operating system features, please visit www.digi.com/solutions/by-technology/dal-operating-system/features.
