Top 12 Digi XBee Management Tools in Free XCTU

Every Digi XBee® comes with a huge, free software toolbox called Digi XCTU®, for Windows, Mac or Linux. Although the name stands for XBee Configuration & Test Utility, configuration and testing are just the beginning. Digi XCTU provides all the capabilities you need to set up and manage XBee devices and networks, and it is one of the key tools in the Digi XBee Tools suite.

You can use XCTU to update your firmware, customize your XBees, manage entire wireless networks, write code, perform range testing, automate processes and much more. We will look at each of these features in detail to help you understand and use the incredible tools offered by Digi's XCTU app.

By the way, you can download the latest version of XCTU for free at any time, and find additional details in the XCTU User Guide.


 XCTU Layout

XCTU Gear 1. Configuration Made Easy

Everyone knows that Digi XBees are a breeze to set up, but they also offer powerful configuration options. XCTU provides all the assistance beginners need (and that experts want too) with contextual help for every option on every XBee. Calculators are also available to assist with inputs. Confused by Join Verification? Simple click the  inline calculator and the rest is done for you. XCTU puts you fully in charge of your XBees and makes it easy to learn more.
  XCTU Configuration Help closeup


XCTU Remote Network Icon 2. Working Wirelessly

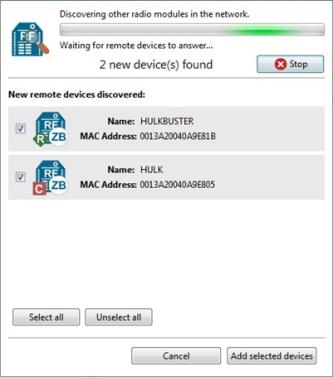

 XCTU connects with your entire Digi XBee network over the air. A single XBee connected via USB provides secure access to configure, manage, map, update and test networked radios wirelessly. Using XCTU over the air is effortless. Simply click the network icon for your local radio and it will scan for all the XBees on your network, adding them to the XCTU interface in a list or graphical map. Hundreds of Digi XBee modules are now at your fingertips. Even when theyre behind a locked door or way at the top of a utility pole, youre securely in control.

Related White Paper: The Wireless Future

XCTU Network Working Mode3. Map Your XBee Network

You can view your entire wireless IoT network laid out in a single map, including the strength of all the connections. XCTU's network mapping function does all of that and more, for free. The tools maps display the full Digi XBee network live in real time. Each nodes role is indicated and multiple pathways between radio nodes are all shown, with their respective signal strengths. Every Digi XBee can be reconfigured right from the map, making it easy to experiment and tune your network. Theres a variety of layout and filtering tools to help focus on what interests you most. Network maps can be exported as images and as data tables, for use in spreadsheets, reports and more. With XCTU's mapping tools, youll never be lost again.

XCTU Network Graph

XCTU Throughput Testing4. Throughput Testing

How much data can your Digi XBees send? XCTU's Throughput tool allows you to measure the communications rate between any two modules. Simply connect one radio module to XCTU, then test your bandwidth to and from any other XBee radio on the same network. You can run a single test to check realtime throughput, or map bandwidth over time by running continuously to record bandwidth changes over time. The throughput tool is great for "what if" scenarios, quantifying performance in the lab, on-site network surveys and more.

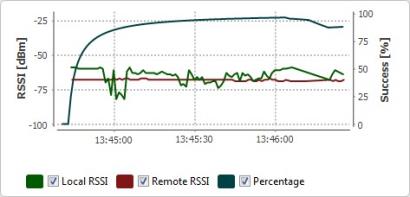

XCTU Range Test Tool5. Range Tests

Range is the greatest distance over which two radios can effectively communicate. While range is always important, in many IoT applications its essential to predict the quality of long-distance links before installation. For example in oil and gas monitoring applications, a radio link may have to travel several kilometers from on-site equipment to a central monitoring station. Its best to know if your chosen solution is likely to work before heading into the wilderness to deploy it. XCTU provides automated and graphical tools for complete loopback range testing, so that entire systems including antennas, cabling and environmental factors can be included in your predictions. Now your Digi XBees can really go the distance.

XCTU Spectrum Analyzer Tool6. Explore the Radio Environment with Spectrum Analyzer

XCTU lets you see the invisible. Its spectrum analyzer tests and measures energy levels (noise) across various radio channels. The tool reports the energy level of each channel in real time, keeping track with graphs and statistics to help you select the best configuration for your network. Avoiding channels with high interference makes your network more reliable, prevents data loss and can extend battery life. Spectrum analysis can be a powerful troubleshooting tool, helping to determine and locate sources of unwanted radio noise.

XCTU MicroPython Tool7. Use Edge Computing with MicroPython

XCTU features a new MicroPython terminal to manage edge computing on the new Digi XBee 3 modules. These new radios can process data locally, reducing transmissions to save bandwidth and extend battery life. Using MicroPython, an easy-to-learn open source scripting and programming language, you can rapidly prototype intelligent behaviors at the edges of your network. Cryptic sensor readings can be transformed into useful data, excess transmissions can be intelligently filtered out, and complex procedures carried out locally whenever needed. To learn more, follow Digi's series on MicroPython examples for XBee.

XCTU MicroPython Terminal xctu

XCTU Frames Generator Tool XCTU Frames Interpreter Tool8. Encode and Decode API Frames

XBees often communicate with host devices using structured API data frames that function like electronic envelopes. They make communications very reliable, but theyre designed for machines to read, not humans. XCTU bridges this gap with encoding and decoding tools that make it easy for developers to understand whats being sent and received. Instead of long strings of hexadecimals youll see the senders address, delivery info, data type and data payload itself in human-readable form. XCTU's frame tools remove a tedious technical task, saving time and returning developer focus where it belongs—creating great solutions.

XCTU Frames Generator Zigbee

XCTU Firmware Update9. Upgrade Firmware

XCTU can directly update any Digi XBees firmware, so that you always have the latest features. It can also wirelessly update firmware over the air for remote modules. Simply add a remote module to XCTU's device list and proceed normally for OTA upgrades. Digi's XBee 3 modules can even change protocols from Zigbee to 802.15.4 to DigiMesh simply by loading new firmware. XCTU will notify you when updates are available, so youre always in charge for functionality, features and compliance.

10. Firmware Explorer

There are many different Digi XBee modules, each with several different firmware versions. Want to explore them all? XCTU's Firmware explorer tool allows you to navigate through the entire firmware library to review available versions and their settings without needing a specific radio module attached to your computer. You can change firmware profiles and save them for later use, or load and edit existing ones with full contextual help and calculator support. Its like having every Digi XBee radio module right at your fingertips.

XCTU Tools11. Full Automation with Command Line Interface

Managing configurations, API frames and keeping track of testing sessions would be a lot of work without XCTU's clever automation. For example, if you have created a configuration that you particularly like, you can save it as a file, then load onto as many other modules as you need to. Want to store a series of API frames for later use? XCTU can do that too. Interactive console sessions can be saved and loaded as needed too, further enhancing your productivity. XCTU's command-line interface helps developers list local ports to find XBee modules, update their firmware and load them with configuration profiles. Advanced users will appreciate all the help that XCTU automation brings to working with Digi XBees in quantity.

XCTU Command Prompt

XCTU XBee Device Recovery 12. XBee Recovery

Worried your radio module has given up the ghost? XCTU can bring it back to life. Perhaps you set your XBee for extended low-power sleep, an unusual baud rate, or some other change that makes it temporarily unresponsive. Even if the problem is corrupted firmware, XCTU's XBee Recovery tool can force an update to bring your XBee back to life, good as new.

XCTU Error Messages

XCTU IconXCTU - The Free XBee Toolbox

XCTU is the best toolbox for working with Digi XBees. Weve taken a high level look at some of the powerful features including configuration, wireless remotes, frame tools, range tests, throughput analysis, network mapping, channel choice, edge computing, firmware management, automation and recovery tools. Look for details about these features in upcoming articles. XCTU is an invaluable part of the XBee ecosystem. Download it today and start supercharging your Digi XBees.
